#119496

MANITEX 50128SHL

Standard features:

128’ Four Section Telescopic Boom with heavy lift option,

7-ton hook and ball,

2-speed Hoist w/Grooved Drum,

Roller Tensioner,

Piston Motor,

4- load sheave quick reeve boom head,

Externally Wired anti-two block w/lockout,

Boom hoist cylinder,

System pressure gauge,

360° Area of operation,

Continuous rotation,

Tilting cab,

Heater/air conditioner,

Upper hatch guard/Windshield cover,

Engine Monitoring System,

Removeable boom rest,

Engine start/stop,

Combined Free Swing and non-Free Swing functionality,

Hydraulic Rotation drum indicator,

Thumb operated electronic throttle,

1-variable displacement pump/1-Gear pump-CCW Rotation-standard,

Boom length and angle indicators,

Radio remote ready,

400’ 5/8” Dia. Rotation resistant Wire rope, 500’ 5/8” Dia. Rotation Resistant Wire Rope,

Audible Outrigger Motion Alarm,

115 gal or 155 gal Hyd Reservoir w/suction strainer & ball valve,

Turret,

Rotation bearing and Swing system – Mechanical houselock, New Load moment indicator – Full visual/Audio Capacity Alert w/shutoff, ROC Solid outriggers; 4 out and down outriggers, 22’ over-all spread, Features a hand held Radio Operated Controller and includes capacities for immediate 13’4” and retracted 7’2” spreads,

Remote winch controls included with hand held radio controller for the outriggers,

Outrigger monitoring system-verification only,

Front bumper stabilizer – for short lower frame configurations only,

2 retractable ladders/1-Aluminum Easy Access Maintenance Ladder,

Diamond plated aluminum decking, Oil cooler, bubble level, Signal horn,

Third wrap limit for main winch and auxiliary winch, Electric over hydraulic controls,

Operators service/parts manuals,

102” Wide Platform Standard.

Additional Options Included:

• 6400 lb Ctwt Special for HL – Requires Engineering Approval

• Offset Tele Jib-32’ Retracted, 49’ Extended • Sub Frame-Short – Std with FBS Required

• Front bumper stabilizer

• Standard mount installation

• Braden Winch w/Piston Motors in lieu of Standard

• 35 Ton 3-Sheave Hook Block 1-7 part line

• Hot shift PTO

• Aluminum Tool Box (36” x 24” x 24”)

• Chassis Mount MOUNTED ON 2025 PETERBILT 567 Mounted on a 2025 Peterbilt 567 tractor chassis with a Cummins X15 525@1900, GOV@1900, 1850@91000, diesel engine, automatic, Eaton EXDP-18F118D Automated Transmission, PACCAR FX-20 Steer axle 20,000 lb. front axle, Meritor RZ-XX166 Tri-Drive rear axle, Full set of Alcoa polished wheels, 26” 100 gallon fuel tank, Heater and air conditioner with defrosters, full instrumentation, full power windows, interior color Gray, ConcertClass AM/FM/WB 3.5,USB port with Bluetooth radio, Air horn mounted under cab, dual heated mirrors, outside stainless steel sun visor, Unit is painted Axalta Two Stage white.

Buy, Sell and Rent Cranes with Crane Hot Line

Sign up for our Newsletter!

Buy, Sell and Rent Cranes with Crane Hot Line

Sign up for our Newsletter!

Advanced Filter

Condition

Years

Capacity

Search

Country

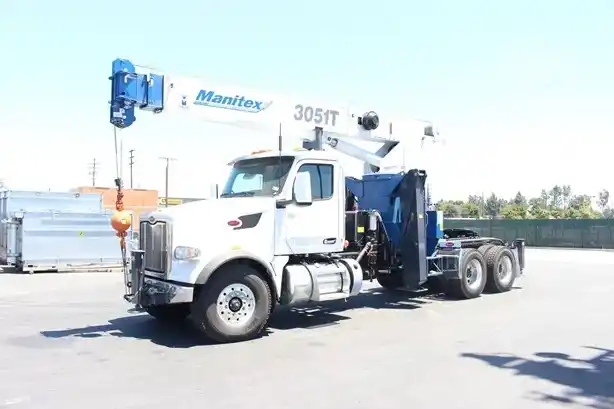

2023 MANITEX 3051T (106098)

Boom Truck

$345,000 USD

Year:2023

Capacity:30.00 TN

Location:USA

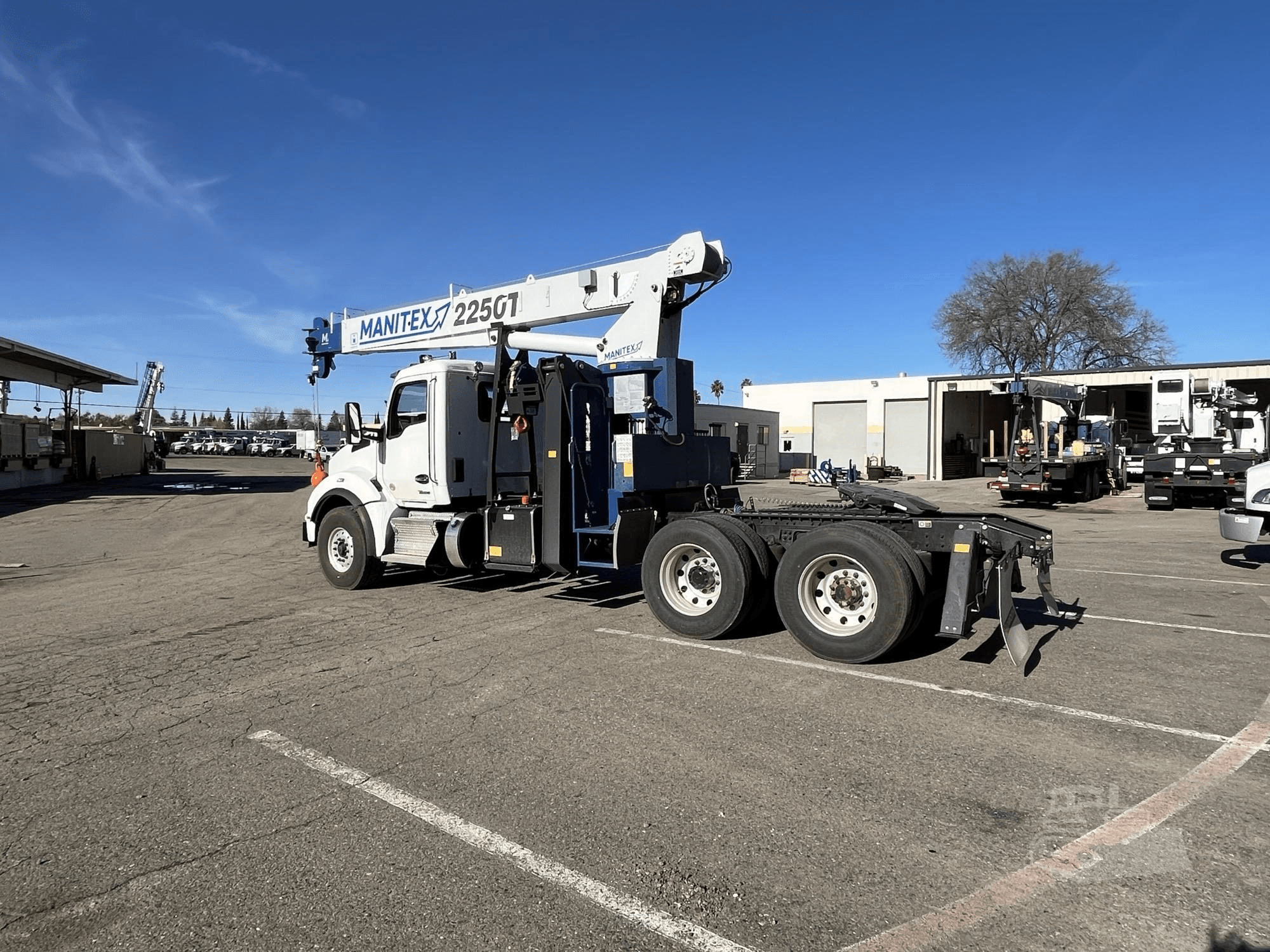

2023 MANITEX 2250T (109942)

Boom Truck

$395,000 USD

Year:2023

Capacity:22.00 TN

Location:USA

2024 MANITEX 1970C (114072)

Boom Truck

Price Upon Request

Year:2024

Capacity:19.00 TN

Location:USA

2025 MANITEX 40124SHL (119358)

Boom Truck

Price Upon Request

Year:2025

Capacity:40.00 TN

Location:USA

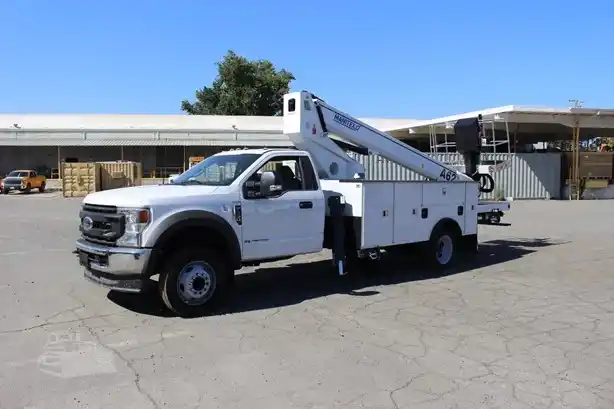

2023 MANITEX A62 (107419)
